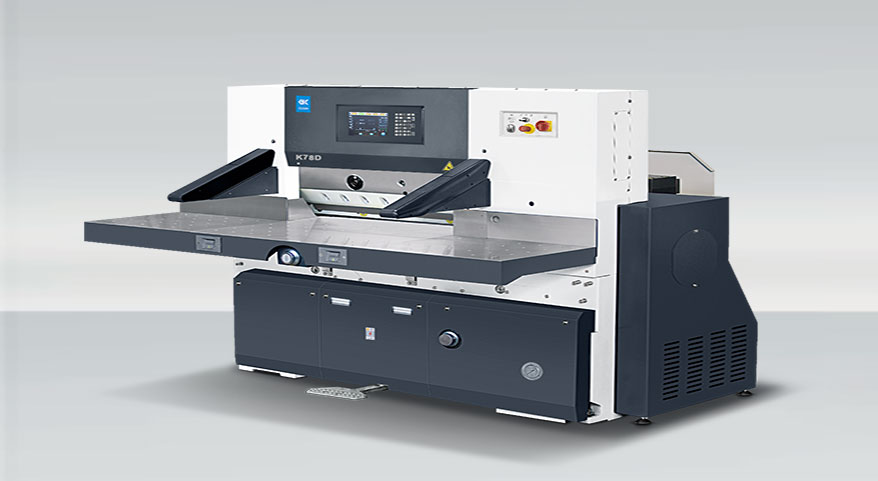

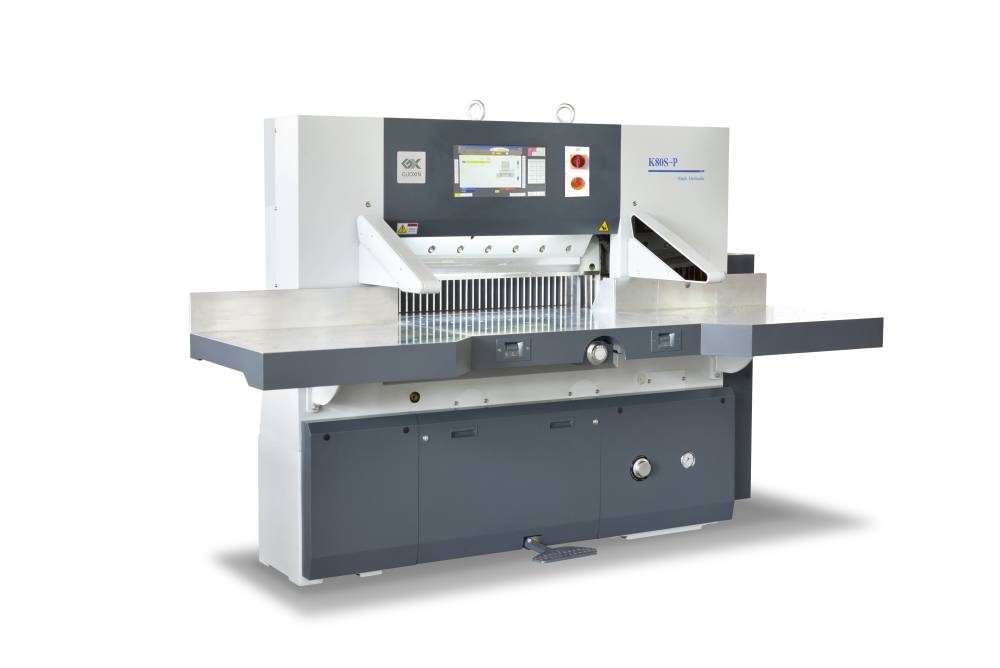

K-T serial adopts CHIMEI INNOLUX company highlight colorful screen sized in 10.4 inches. 11-12 Guoxin Printing Machinery The personalized programs are functioned easily and enable to memorize within 300,000 hours. With Mitsubishi converter adopted in feeder motor, the machine enables registra- tion within ±0.01mm once a time. Worm gear system facilitates efficiency by 45 times/min- utes for cutting speed. Elaborate knife holder latch alleviates the risk of damage by malfunc- tion. Reliability is fully guaranteed through stable and qualified operation with industrial computer systems.
Technical Parameters |
Unit |
Value |
Maximum cutting length |
mm |
800 |
Maximum cutting width |
mm |
800 |
Maximum cutting height |
mm |
120 |
Minimum cutting (without pressure plate) |
mm |
18 |
Minimum cutting (including pressure plate) |
mm |
85 |
Length(cutting point to front table) |
mm |
690 |
Length(cutting point to back table) |
mm |
1240 |
Height of working platform from ground |
mm |
900 |
Additional platform length |
mm |
485(650) |
Additional platform width |
mm |
600(750) |
Platen pressure (minimum) |
KN |
1.5 |
Platen pressure (maximum) |
KN |
30 |
Blade specifications |
mm |
12.7 |
Sharpening place (maximum) |
mm |
30 |
Cutting speed |
t/m |
45 |
Main motivation |
KW |
3 |
Voltage |
V |
361-399 |
Wire thickness |
mm2 |
2.5 |
