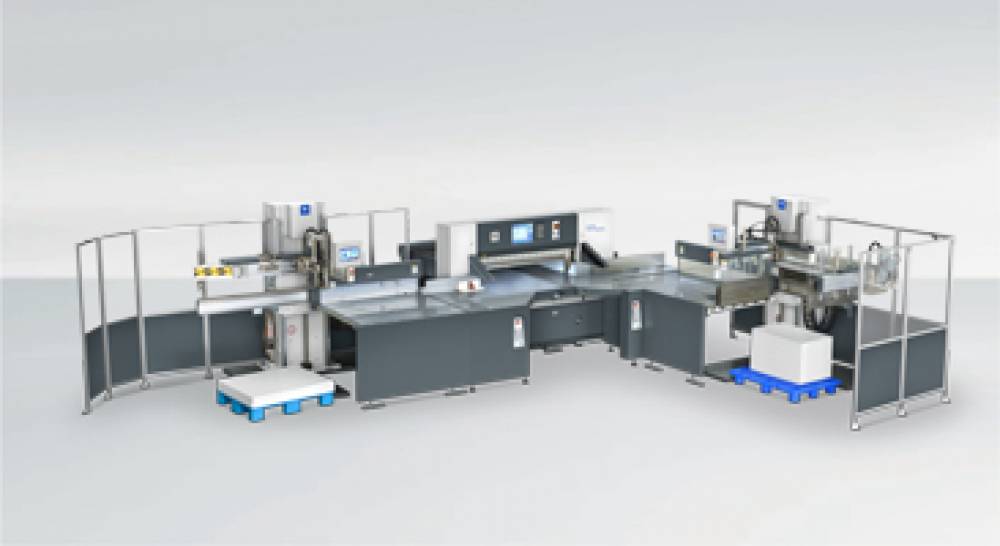

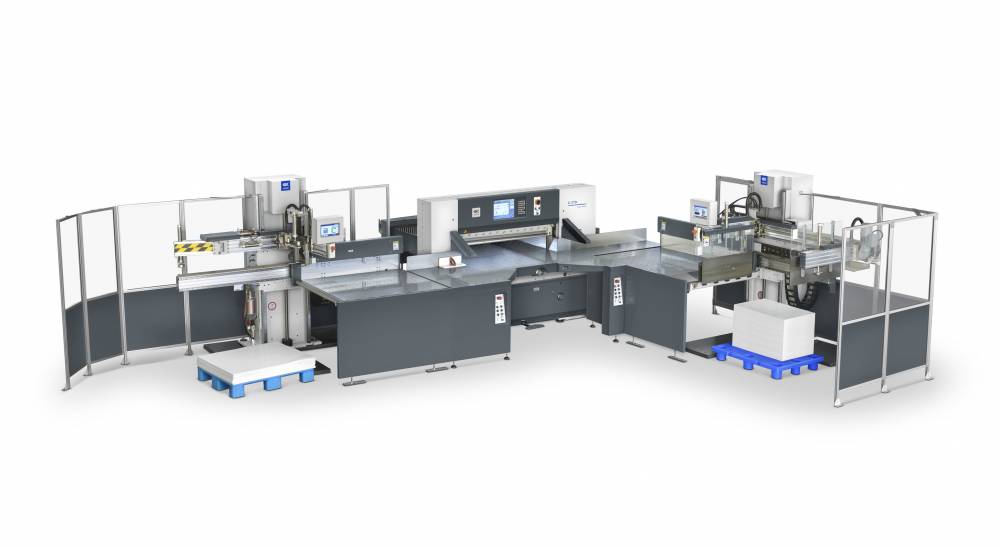

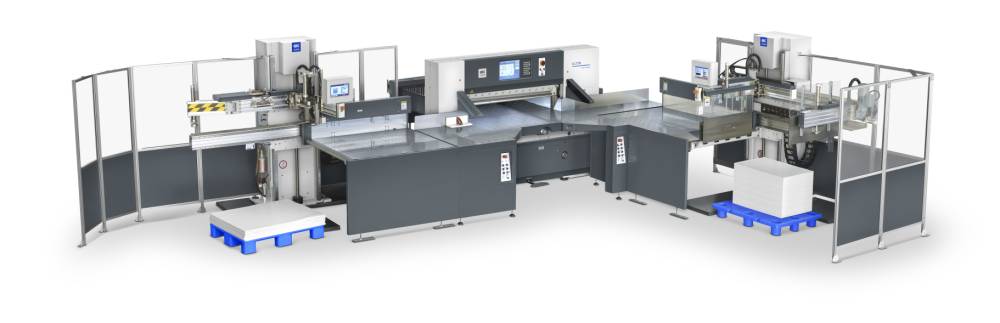

This cutting line consisting of paper cutter , intelligent loader and unloader is capable to automatically load, jog ,transport and unload the paper. It features the high efficiency, low labor intensity and short make-ready time. We could customize the cutting line based on the demand of our clients.

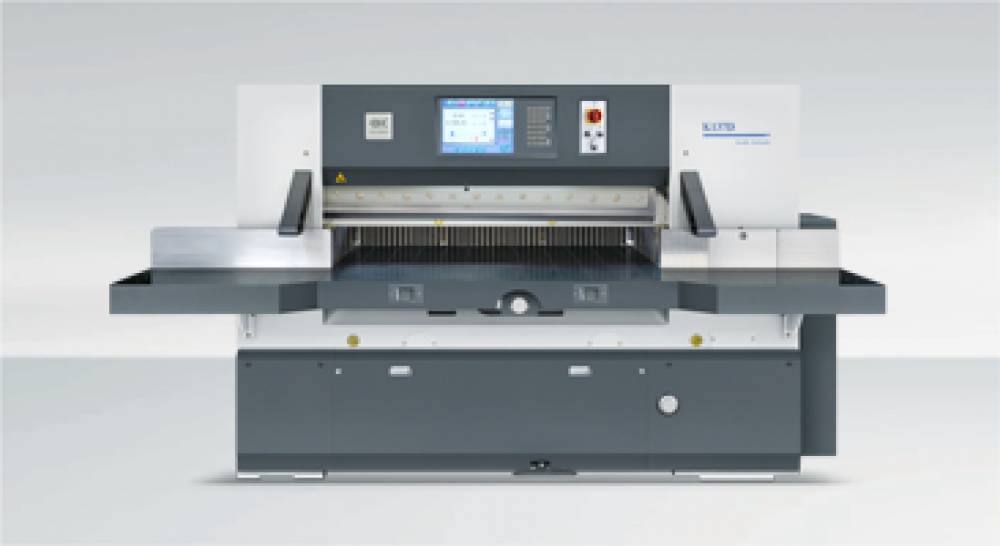

CONFIGURATION LIST OF K137D COMPUTER-CONTROLLED PAPER CUTTER
|
Technical Parameters |
Unit |
Value |
|
Maximum cutting length |
mm |
1450 |
|
Maximum cutting width |
mm |
1370 |
|
Maximum cutting height |
mm |
165 |
|
Minimum cutting (without pressure plate) |
mm |
25 |
|
Minimum cutting (including pressure plate) |
mm |
90 |
|
Length(cutting point to front table) |
mm |
735 |
|
Length(cutting point to back table) |
mm |
1925 |
|
Height of working platform from ground |
mm |
900 |
|
Additional platform length |
mm |
650（750） |
|
Additional platform width |
mm |
750（1000） |
|
Platen pressure (minimum) |
KN |
1.50 |
|
Platen pressure (maximum) |
KN |
45 |
|
Blade specifications |
mm |
13.75 |
|
Sharpening place (maximum) |
mm |
60 |
|
Cutting speed |
t/m |
45 |
|
Main motivation |
KW |
4 |
|
Voltage |
V |
361-399 |
|
Wire thickness |
mm2 |
2.5 |
|
Technical Parameters |
Unit |
Value |
|
Compressed air |
Bar |
5-8 |
|
Gas consumption |
L/min |
4 |
|
Voltage |
V,HZ |
360-420V，50/60HZ |
|
Power consumption (maximum) |
A |
3.8 |
|
Insurance maximum current |
A |
10 |
CONFIGURATION LIST OF U-2 PAPER UNLOADING MACHINE
|
Technical Parameters |
Unit |
Value |
|
Application for size(max) |
mm |
800x1200(950x1260) |
|
Loading capacity(max) |
Kg |
200 |
|
Pile height(max) |
mm |
1300 |
|
The max height of loading paper(from one time) |
mm |
165 |
|
Space for putting pallet(W*D) |
mm |
3250x1550 |
|
Speed cutters |
mm |
1150/1370 |
|
Height of working platform from ground |
mm |
900 |
|
Voltage |
V |
380 |
