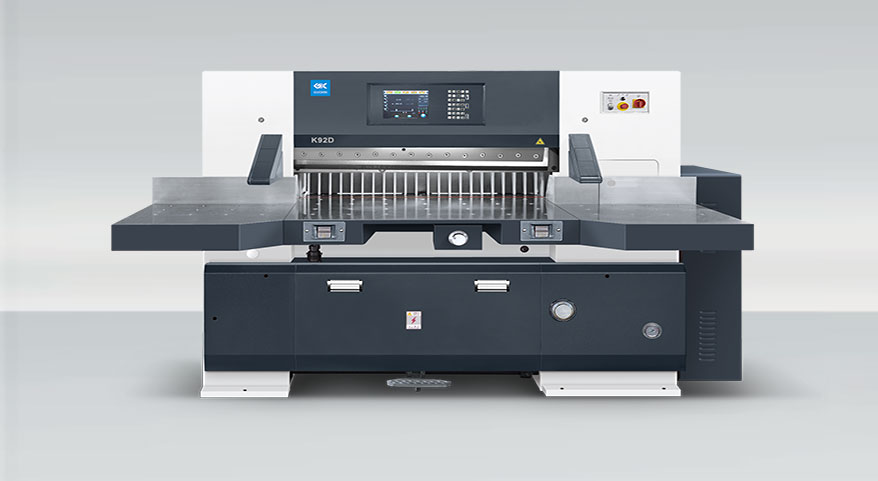

K-T serial adopts CHIMEI INNOLUX company highlight colorful screen sized in 10.4 inches. The personalized programs are functioned easily and enable to memorize within 300,000 hours. With Mitsubishi converter adopted in feeder motor, the machine enables registra- tion within ±0.01mm once a time. Worm gear system facilitates efficiency by 45 times/min- utes for cutting speed. Elaborate knife holder latch alleviates the risk of damage by malfunc- tion. Reliability is fully guaranteed through stable and qualified operation with industrial computer systems.
|
Technical Parameters |
Unit |
Value |
|
Maximum cutting length |
mm |
920 |
|
Maximum cutting width |
mm |
920 |
|
Maximum cutting height |
mm |
130 |
|
Minimum cutting (without pressure plate) |
mm |
25 |
|
Minimum cutting (including pressure plate) |
mm |
85 |
|
Length(cutting point to front table) |
mm |
690 |
|
Length(cutting point to back table) |
mm |
1360 |
|
Height of working platform from ground |
mm |
900 |
|
Additional platform length |
mm |
485（650） |
|
Additional platform width |
mm |
600（750） |
|
Platen pressure (minimum) |
KN |
1.5 |
|
Platen pressure (maximum) |
KN |
30 |
|
Blade specifications |
mm |
12.7 |
|
Sharpening place (maximum) |
mm |
30 |
|
Cutting speed |
t/m |
45 |
|
Main motivation |
KW |
3 |
|
Voltage |
V |
361-399 |
|
Wire thickness |
mm2 |
2.5 |
